Connector 7/16 (DIN)

Published April 4, 2013 | By broadcast#

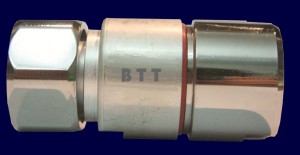

Connector 716 M 7.8

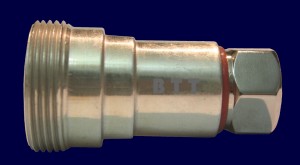

Connector 716 F 1.5

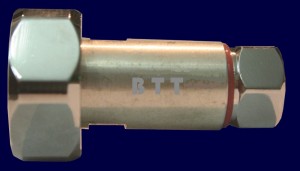

Connector 716 M



  • ELECTRICAL SPECIFICATIONS
    • IMPEDANCE: 50 Ω
    • WORKING VOLTAGE RATING: 2700 VRMS
    • FREQUENCY RANGE: DC TO 7.5 GHz



  • MECHANICAL SPECIFICATIONS
    • MATING: M 29-1.5 THREADED
    • COUPLING



  • INTERFACE
    • ITL-SPEC-CECC-22190



  • CABLING
    • CLAMP, SOLDER AND CRIMP



  • PLATING
    •  SILVER



  • DIELECTRIC MATERIAL
    • PTFE



Posted in 7/16 (DIN)
