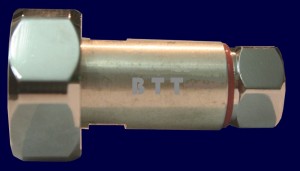

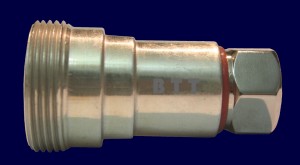

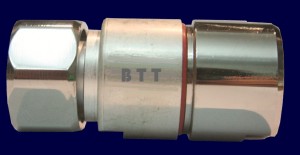

Connectors 7/16

Characteristics

• Produced according to standards
• The best conductive for waves
• Screw type
• High quality

Produced according to standards

• iec 169-10
• cecc 22190

Applications

• Military and civil radio-telecommunications equipment
• Countermeasures
• Navy equipment
• Video communications
• Computer networks

Raw material

• Main body: brass
• Center contacts: beryllium copper (depend on order)
• Insulators: PTFE Teflon
• Gaskets: silicone rubber

Platting

• Main body: silver or nickel
• Center contacts silver or nickel

Electrical characteristics

• Impedance:  50Ω
• Frequency range : dc-7.50Ghz.

VSWR

• right angle models : 1.15Max. ghz from dc to 3rd
• straight models : 1.10Max. ghz from dc to third. -1.20 from 3 to 7 ghz
• Insertion loss (db) :        00:05 GHz.
• Contact resistance : <.4 impedance: 50Ω
• Frequency range: dc-7.50Ghz.

VSWR

• Right angle models: 1.15Max. GHz from dc to 3rd
• Straight models: 1.10max. From dc to 3 GHz.  -1.20 GHz from third to 5/7
• Insertion loss (db): 00:05 GHz.
• Contact resistance    <0.4 Mω   Center contact <1.5 Mω    Outer contact
• rf – leakages : 130 db At1Ghz
