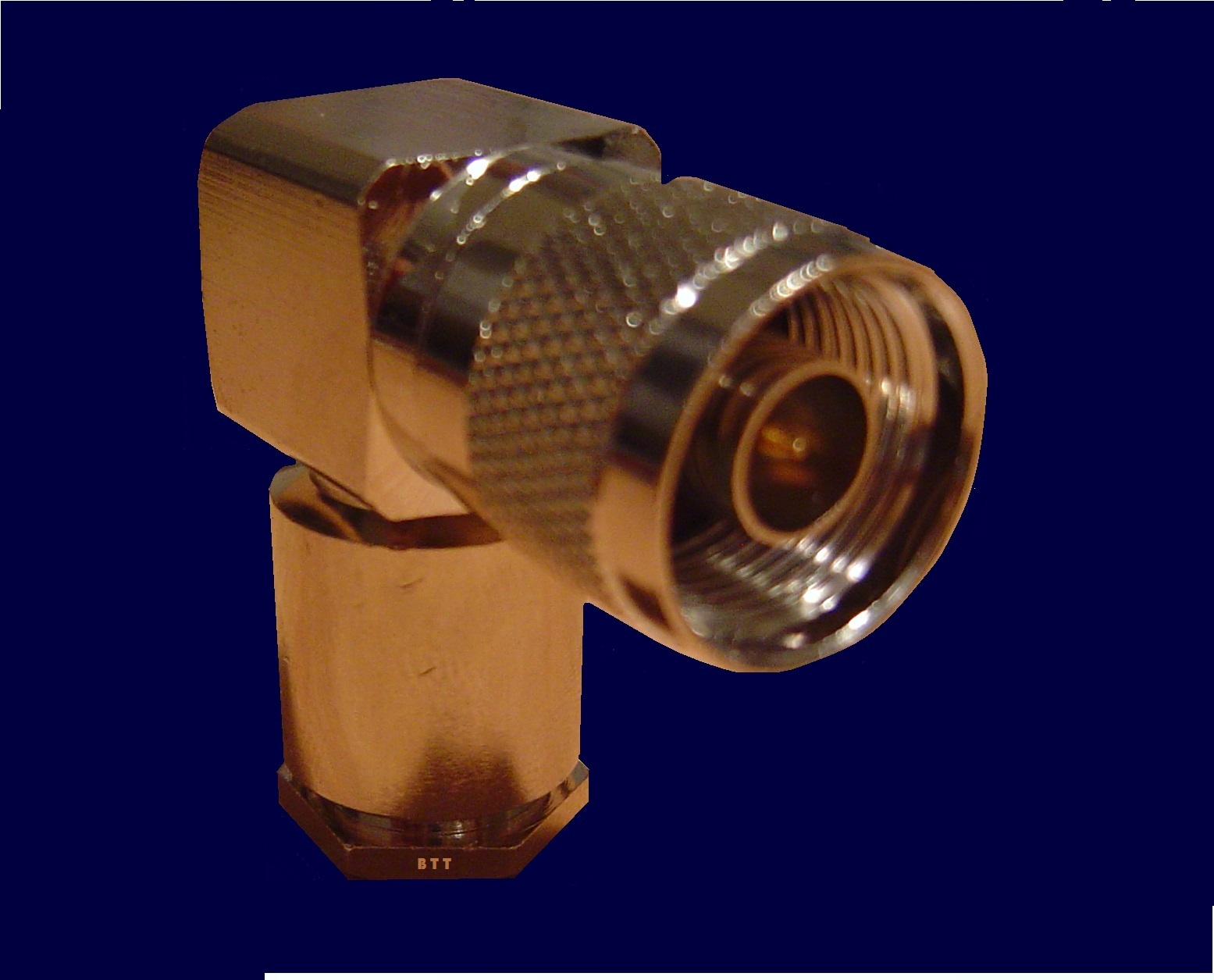

Connectors N

Characteristics

• Produced according to standards
• The best conductive for waves
• Screw type
• High quality


Produced according to standards:

• mil – c- 39012
• iec 169-16

Applications

• Millitary and civil radio -trlecommunications equipment
• countermeasures
• navy equipment
• videocommunications
• computer networks

Raw material

• main body :brass
• center contacts :beryllium copper (bepend on order)
• insulators:p.t.e.f teflon
• gaskes : silicone rubber

Platting

• main body :siver or nickle
• center contacts :gold-silver

Electrical characteristics

• impedance: 50ω – 75ω (depend on order )
• frequency: dc-2 ghz

VSWR

• right angle : 1.50 max
• straight : 1.30 max
• insertion loss: 0.15 db at 10 ghz.
• rf leakage: 90 db min. from 2 to 3 ghz.
• contact resistance: 1-1.5mω min.
• power handling
• 100  mhz :1000w
• 1000 mhz: 300w
• 3000 mhz: 150w
